TCG type rake type rotary grid

TCG type rake type rotary grid

Usage and introduction:

TCG type rotary rake grille is one of the main drainage pretreatment product decontamination equipment. The equipment is the most advanced one can automatically remove the liquid in a variety of shapes of debris, with a solid liquid separation for the purpose of the device.

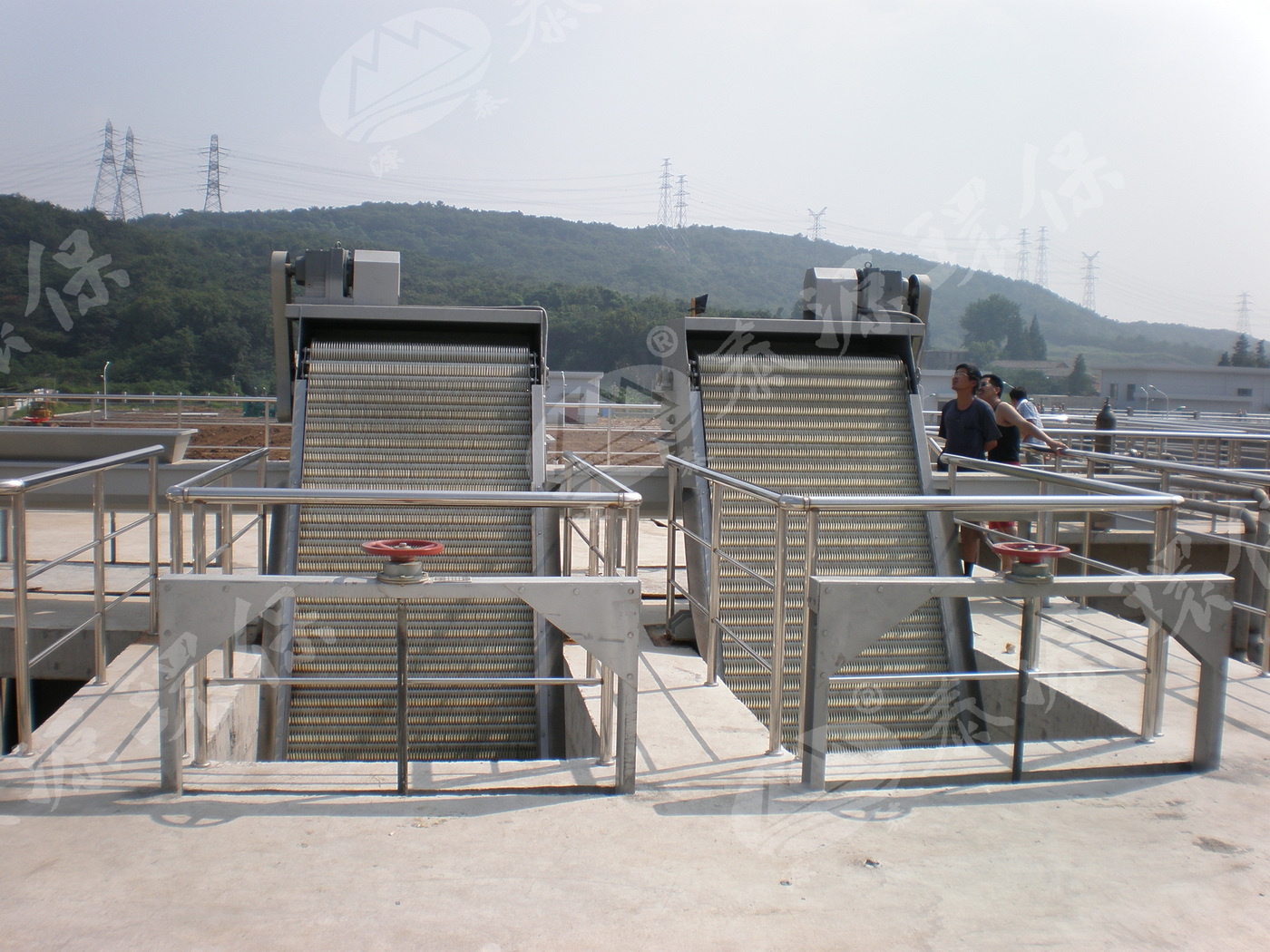

TCG teeth rake type rotary grid is widely used in urban and community planning of rainwater and wastewater pre treatment; water plants, power plants, steel mills and other surface water intake of floating debris removal; wastewater of slaughter, medicine, papermaking, chemical fiber, textile, printing and dyeing and other sundries separating; hairs, wash hair recycling industry screening; seafood, fruits and food processing technology in washing or residue separation.

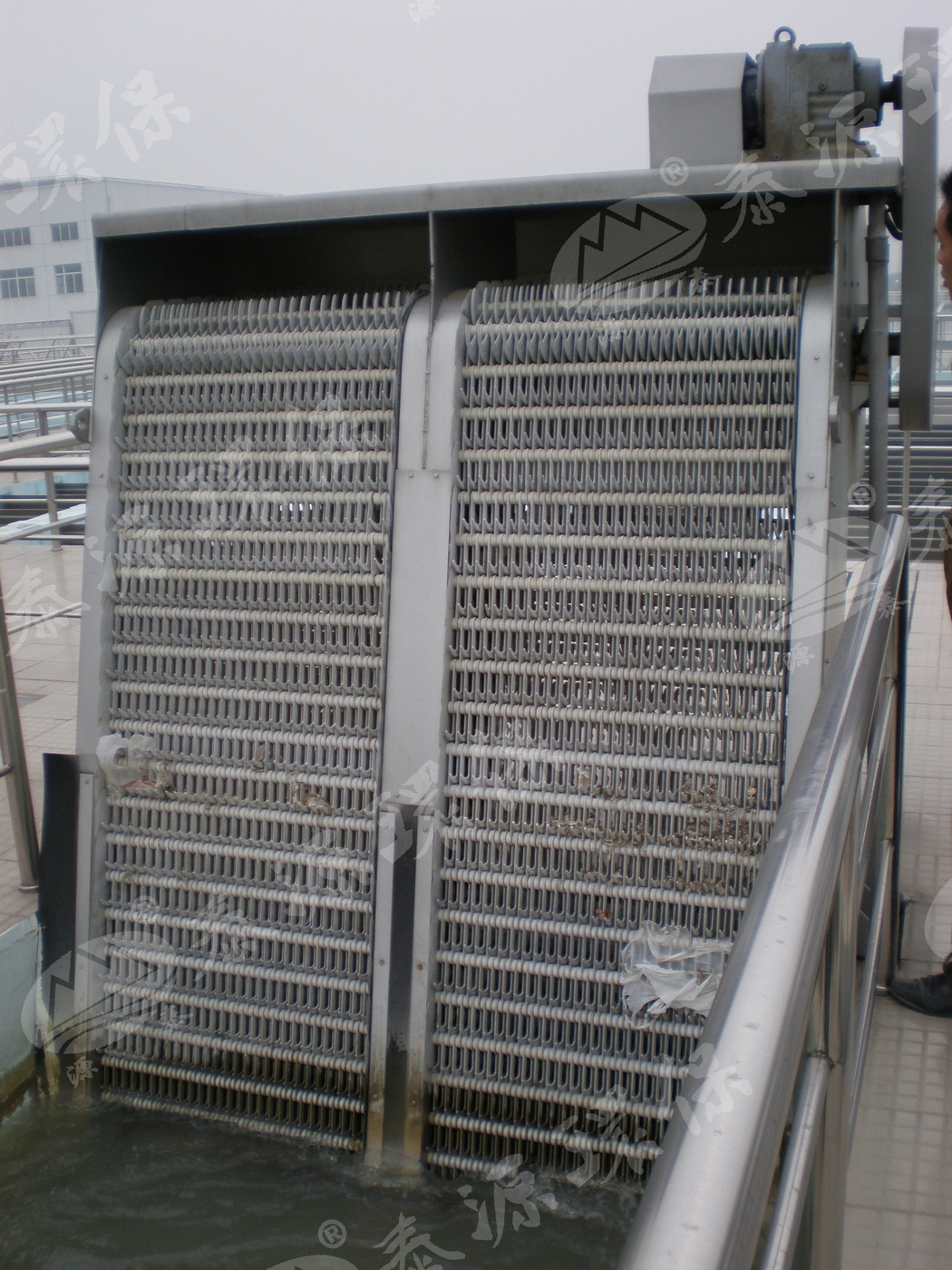

TCG teeth rake rotary grate is composed of ABS engineering plastics, nylon 66, tooth made of nylon 1010 or so, according to the assembly sequence in the teeth of a harrow shaft, to form a closed chain rake teeth, the lower part is installed in the inlet channel, under the drive of the drive system, the harrow tooth chain (towards the water surface) and bottom-up movement and carry solid impurities are separated from the liquid, the liquid can flow from the harrow tooth gap grid, during the whole working process of the continuous.

Due to the tooth structure design is reasonable, the tooth carries the impurities arrive at the upper end of the reverse movement, between before and after connected with two rows of teeth produced relatively self cleaning movement to facilitate the impurities to drop by gravity; set a pair with rake teeth chain motion in the opposite direction of the rubber brush while at the back of the equipment to ensure each row of tooth movement to the location will be thoroughly brush net.
